Overview
The XHTF1040 CPT Atomic Clock combines miniature design with advanced timing capabilities. For detailed information, please contact us.
Features
- Miniature structure
- 3.3V low power supply, 1.5V low consumption
- UART serial port communication

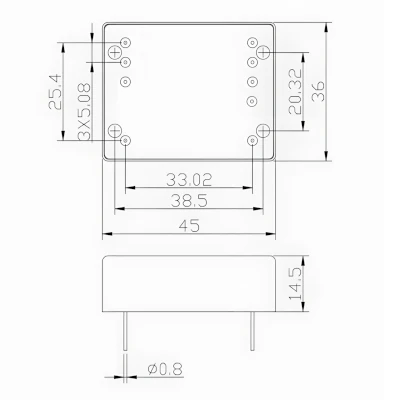

- Compatible with SA.45 pins
- 1PPS input synchronization and PPS output
- TOD output
Main Specifications
Core Specifications
| Specification | Details | ||
|---|---|---|---|
| Phase Noise (SSB) | @10Hz | ≤-90dBc/Hz | |
| @100Hz | ≤-120dBc/Hz | ||
| @1KHz | ≤-135dBc/Hz | ||
| @10KHz | ≤-145dBc/Hz |
Pin Connection Details
| Pin Number | Function | Pin Number | Function |
|---|---|---|---|
| 1 | NC | 7 | +3.3V |
| 2 | NC | 8 | GND |
| 3 | NC | 9 | 1PPS input |
| 4 | Lock status | 10 | 1PPS output |
| 5 | TXD | 11 | NC |
| 6 | RXD | 12 | 10MHz output |
Application
- Widely assembled on the time frequency system for satellite navigation, underwater navigation, digital communication, network synchronization, railway transportation etc.
Frequently Asked Questions
Common questions about XHTF1040 CPT Atomic Clock
What distinguishes the XHTF1040 CPT atomic clock?
The XHTF1040 emphasizes ultra-low power, operating from a 3.3 V supply with 1.5 V low consumption in a miniature structure, and it is SA.45 pin-compatible for straightforward replacement.
What phase noise does the XHTF1040 provide?
On its 10 MHz output the single-sideband phase noise is ≤-90 dBc/Hz at 10 Hz, ≤-120 dBc/Hz at 100 Hz, ≤-135 dBc/Hz at 1 kHz, and ≤-145 dBc/Hz at 10 kHz.
What timing interfaces does the XHTF1040 offer?
It provides 1PPS input synchronization, a 1PPS output, a 10 MHz output, and TOD output over a UART serial port.
What applications does the XHTF1040 support?
It is used in time-frequency systems for satellite navigation, underwater navigation, digital communication, network synchronization, and railway transportation.
