Quick Overview

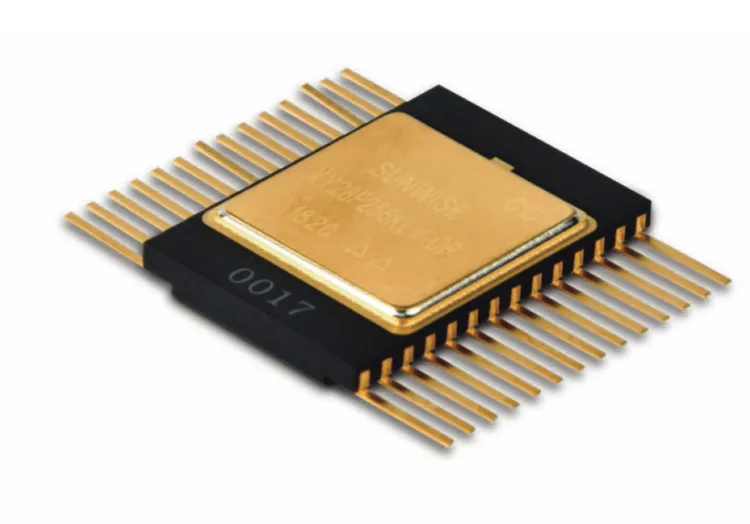

The XY28F256KV is a programmable read-only memory (PROM) device fabricated using 0.13 μm CMOS technology. It features high performance, strong radiation resistance, and low power consumption. The chip includes four sets of redundant storage modules and supports both manual and automatic programming through a dedicated programmer. It is widely applicable in aerospace electronics and control systems.
Key Specifications
| Parameter | Value |
|---|---|
| Process Technology | 0.13 μm |
| Dimensions (mm) | 17.8 × 12.5 × 2.5 |
| Weight (g) | 2.1 |
| Operating Temperature (°C) | −55 to +125 |
| Storage Temperature (°C) | −65 to +150 |
| Package Type | CFP28 |
| Quality Grade | CAST C |
Key Features
- Programmable, read-only, and asynchronous operation.
- 32K×8bit capacity for flexible data storage.
- Strong radiation resistance suitable for aerospace environments.
- Fully independent and controllable design.
Applications
- Used in aerospace embedded electronic systems, first flight in 2017.
Documentation & Resources
Frequently Asked Questions
Common questions about XY28F256KV (5V) 32K×8bit Anti-Radiation PROM
What is the capacity and supply voltage of the XY28F256KV?
The XY28F256KV is a 5 V PROM offering 32K x 8-bit capacity, fabricated on 0.13 um CMOS technology. It includes four sets of redundant storage modules.
How is the XY28F256KV programmed?
It supports both manual and automatic programming via a dedicated programmer and operates as a programmable, read-only, asynchronous memory for aerospace electronics.
What are the package and temperature ratings?
The device is supplied in a CFP28 package at CAST C quality grade, weighs about 2.1 g, and operates from -55 to +125 C.
Does the XY28F256KV have flight heritage?
Yes. It first flew in 2017 and is used in aerospace embedded electronic systems with strong radiation resistance.
