Flexible Solar Wings - High Efficiency Solar Power Solutions
Product Introduction

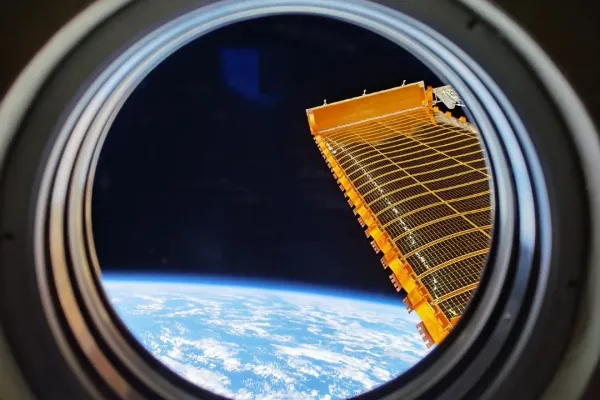

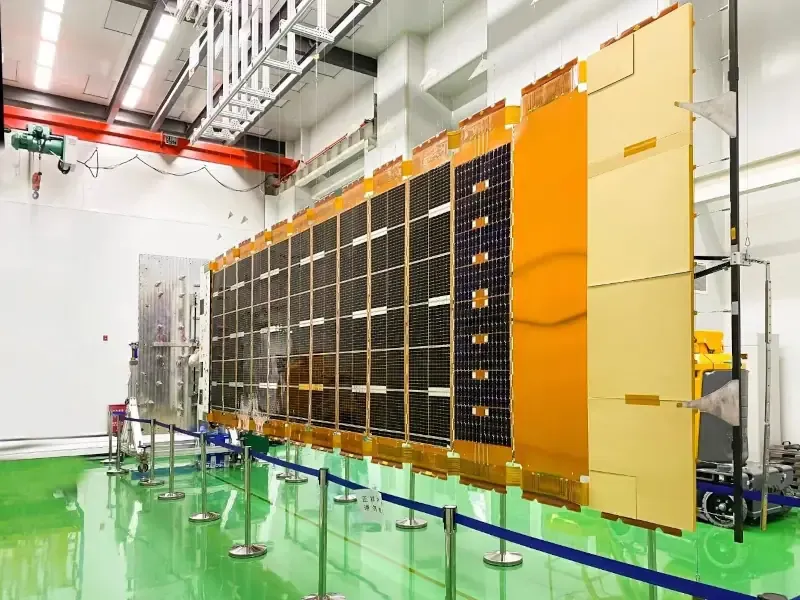

Stacked Flexible Solar Wings:
Our Stacked Flexible Solar Wings consist of rigid battery circuits, flexible substrates, flexible hinges, advanced deployment mechanisms, and pressing/releasing mechanisms. Perfect for next-gen flat-panel satellites, these wings are ideal for large-scale networking, mass production, and network deployment.
- High Storage: Achieves a volume-to-power ratio 8 times higher than traditional rigid wings. Learn more about solar panel efficiency.
- Lightweight: Up to 175% lighter than traditional rigid wings.
- Modularity: Modular component design for easy mass production.

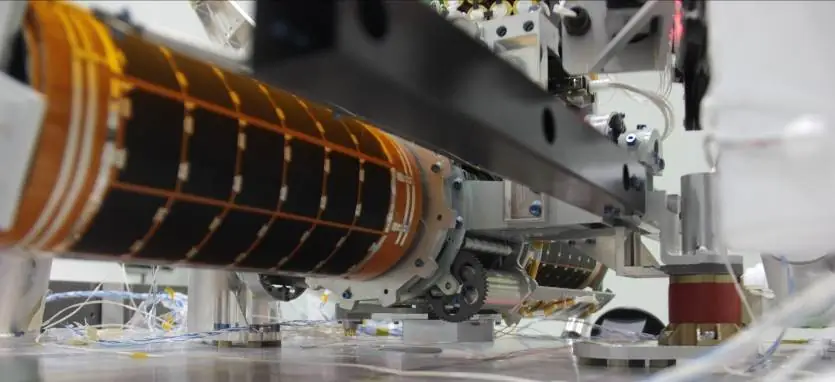

Reel-type Flexible Solar Wings:
The Reel-type Flexible Solar Wings consist of flexible battery circuits, flexible blankets, advanced unfolding mechanisms, and compression/release mechanisms. Perfect for scientific experiments, deep space exploration, and other spacecraft, these wings offer:
- High Efficiency: Optimal energy output with minimal weight.
- Compact Size: Small and lightweight design, ideal for space-saving applications.
- Advanced Mechanisms: Incorporates new deployment technologies for reliable performance.
Product Image
Product Features
- Lightweight: Up to 175% lighter than traditional solar wings, making them ideal for .
- High Storage: 8 times more efficient volume-to-power ratio, enhancing storage capabilities for .
- Modularity: Easy-to-expand modular components, suitable for a variety of . Learn more about our advanced rigid solar wing technologies.
Technical Parameters
| Typical battery array area (㎡) | Stacked flexible solar wings | Reel-type flexible solar wing |
|---|---|---|
| Weight specific power ( W/kg ) | ＞10 | ＞5 |
| Expand fundamental frequency (Hz) | 18 | 40 |
| Typical battery array area (㎡) | 100 | 220 |
| Volume specific power ( kW/m 3 ) | ＞0.1 | 0.05 |
Application Scenarios
-
Stacked Flexible Solar Wings: Ideal for efficient networking satellites and large-scale constellation construction.
-
Reel-type Flexible Solar Wings: Perfect for scientific experiments, deep space exploration, and lunar bases.
Related Products
Looking for more solar solutions? Check out our solar panel systems and energy storage units.
Frequently Asked Questions
Common questions about Flexible Solar Wings - High Efficiency Solar Power Solutions
What missions is this product suitable for?
Stacked wings excel in satellite networking and large constellation construction with 100㎡ arrays, while reel-type wings are perfect for scientific experiments, deep space exploration, and lunar bases requiring 220㎡ coverage. Both designs support mass production and modular deployment.
How does this product compare to related products?
Revolutionary lightweight design achieves 175% weight reduction compared to traditional rigid solar wings, with 8 times higher volume-to-power ratio. Superior expandable frequencies (18-40Hz) ensure stable deployment, while advanced deployment mechanisms offer reliability far exceeding conventional solar arrays.
What are the key technical advantages?
Exceptional weight-specific power (>10 W/kg for stacked, >5 W/kg for reel-type) and volume-specific power (>0.1 kW/m³ for stacked) deliver maximum energy efficiency. Advanced deployment mechanisms with pressing/releasing systems ensure reliable operation in space environments while modular design enables easy scalability.
How does it integrate with other systems?
Flexible substrates and hinges enable seamless integration with various spacecraft platforms and deployment mechanisms. Compatible with standard power management systems and can be easily scaled for different mission requirements. Modular component design facilitates rapid assembly and integration with existing spacecraft architectures.
What support and documentation is available?
Comprehensive technical specifications include detailed performance curves, deployment mechanism schematics, and integration guidelines. Our engineering team provides mission-specific configuration support, deployment testing services, and long-term performance analysis to ensure optimal operation throughout the mission lifecycle.
